Oyan
The Oyan Luminaire by Fenos is a minimal recessed ceiling luminaire with an 8mm aperture and 9W power. Equipped with advanced Bartenbach LFO lens technology for reduced glare and a comfortable lighting experience. Available in trimmed or trimless versions, with primer-coated body for painting and optional finishes in aluminum, copper, wood, and more. CRI 90+, engineered heat sink, standard drivers, and 5-year warranty.
| Family Order Code |
F181 |
|---|---|
| Light Source |
LED |
| Power Range |
9W |
| lm / W |
60 lm |
| Luminous Flux (lm) |
540 |
| Color Rendering (Ra) |
>90 |
| Color Temperature (K) |
2700K | 3000K | 3500K| 4000K |
| Body Color |
White | Black |
| Supply Voltage |
120 Vac, 50Hz |
| Driver |
TRIAC/0-10V/DALI, Dimmable version available upon request |
| Recommended Applications |
INDOORS / Residential / Office / Shop |
Oyan Flat And Minimal Downlight
Modern Recessed Spotlight

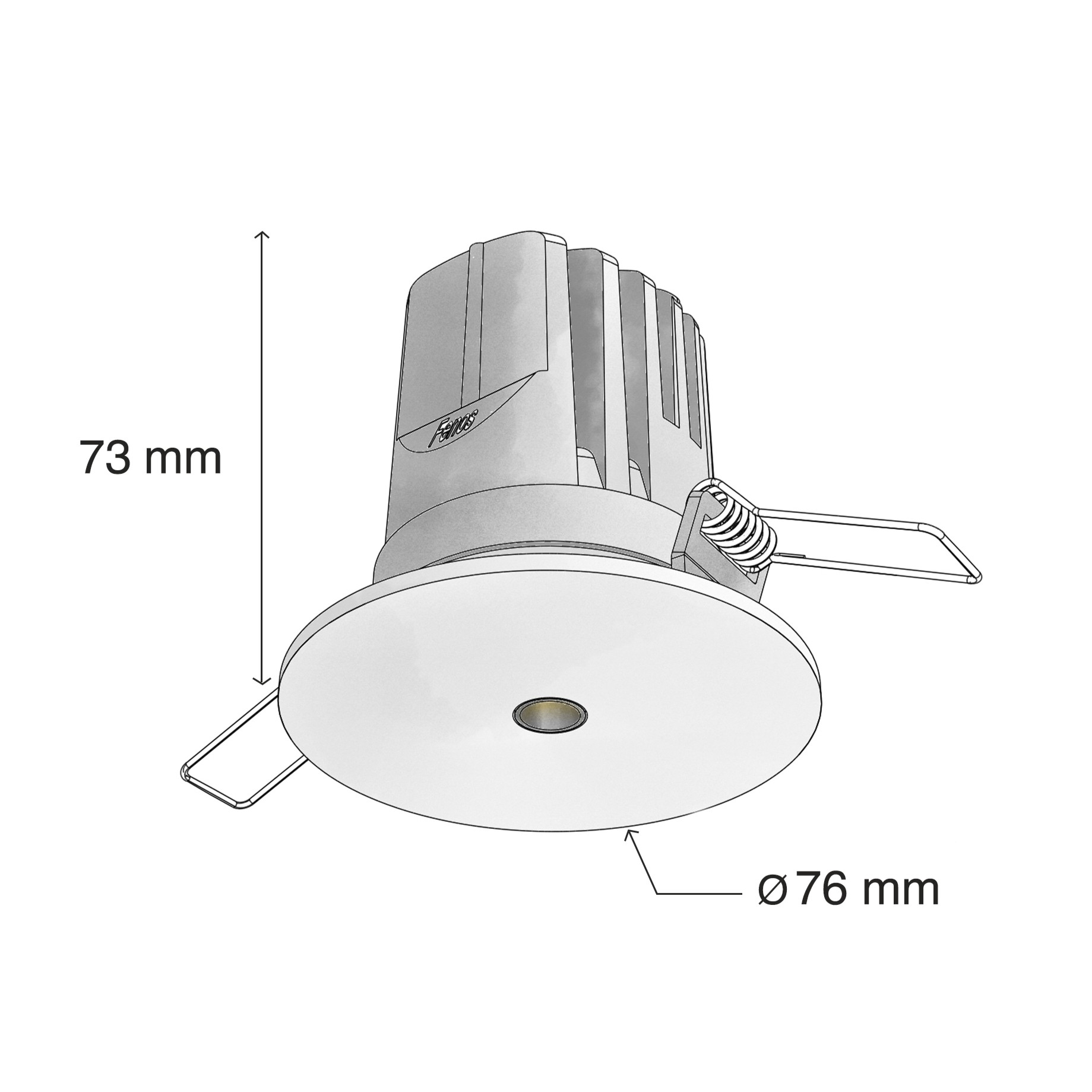

Dimensions

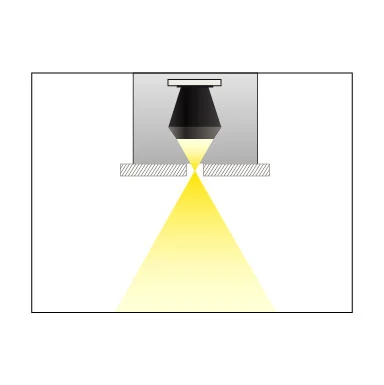

An advanced optic makes a focal point below the lens and light is widened afterward
3D View
Description
Oyan Luminaire by Fenos – Minimal Recessed Ceiling Luminaire
The Oyan Luminaire by Fenos represents the perfect combination of minimalist design and precision engineering. With its discreet 8mm aperture, it integrates seamlessly into ceilings, delivering elegant and ambient lighting without disrupting the interior design aesthetic.
Key Features of the Oyan Luminaire
- Minimalistic & Modern Design: Compact and subtle, the Oyan luminaire remains exceptionally discreet while providing efficient and elegant ambient lighting.
- Flexible Installation Options: Oyan is uniquely adaptable and can be installed as a trimmed (with edge) luminaire or completely trimless (frameless), allowing it to conform to any architectural style.
- Advanced Bartenbach LFO Lens: Equipped with state-of-the-art Bartenbach LFO lenses featuring double-focus technology, Oyan significantly reduces glare (UGR < 19) and ensures a comfortable, high-quality visual experience.
- Customizable Finishes & Seamless Integration: The primer-coated body allows the fixture to be painted to perfectly match any ceiling color. It is also available in premium material finishes, including Aluminum, Copper, and Wood, for bespoke design statements.
General Features of Fenos Luminaires
- Engineered Heat Sink Design: For superior thermal management and guaranteed longevity.
- High CRI (90+): Renders colors with exceptional accuracy and vibrancy.
- Reliable Standard Drivers: Ensures stable, flicker-free, and power-efficient operation.
- 5-Year Warranty: A testament to Fenos’s commitment to quality and durability.
Why Choose the Oyan Luminaire?
The Oyan recessed luminaire is an all-in-one solution for modern interiors. It masterfully combines a minimalist aesthetic, high-performance optics, and superior build quality, making it the ideal choice for residential, hospitality, and commercial spaces where both functionality and design are paramount.
Downloads
- 3D File
- Installation Details
- Marketing Brochure
Order Code
| ORDER CODE | POWER (W) | CCT(K) | BEAM ANGLE | BODY COLOR |
|---|---|---|---|---|
| F181W930M | 9 | 3000 | Medium | White |
| F181B930M | 9 | 3000 | Medium | Black |
| F181PI930M | 9 | 3000 | Medium | Silver |
| F181W940M | 9 | 4000 | Medium | White |
| F181B940M | 9 | 4000 | Medium | Black |
| F181PI940M | 9 | 4000 | Medium | Silver |
