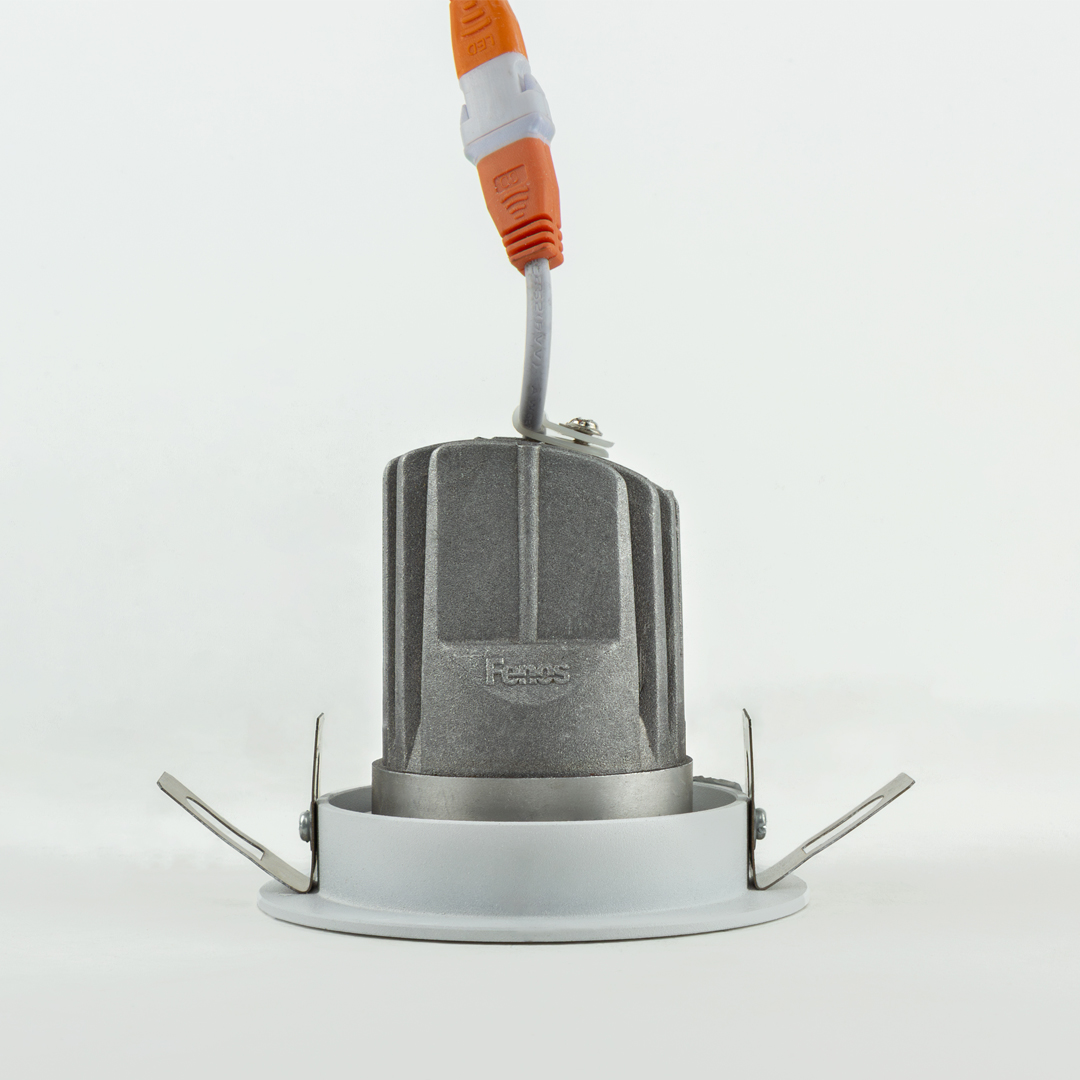

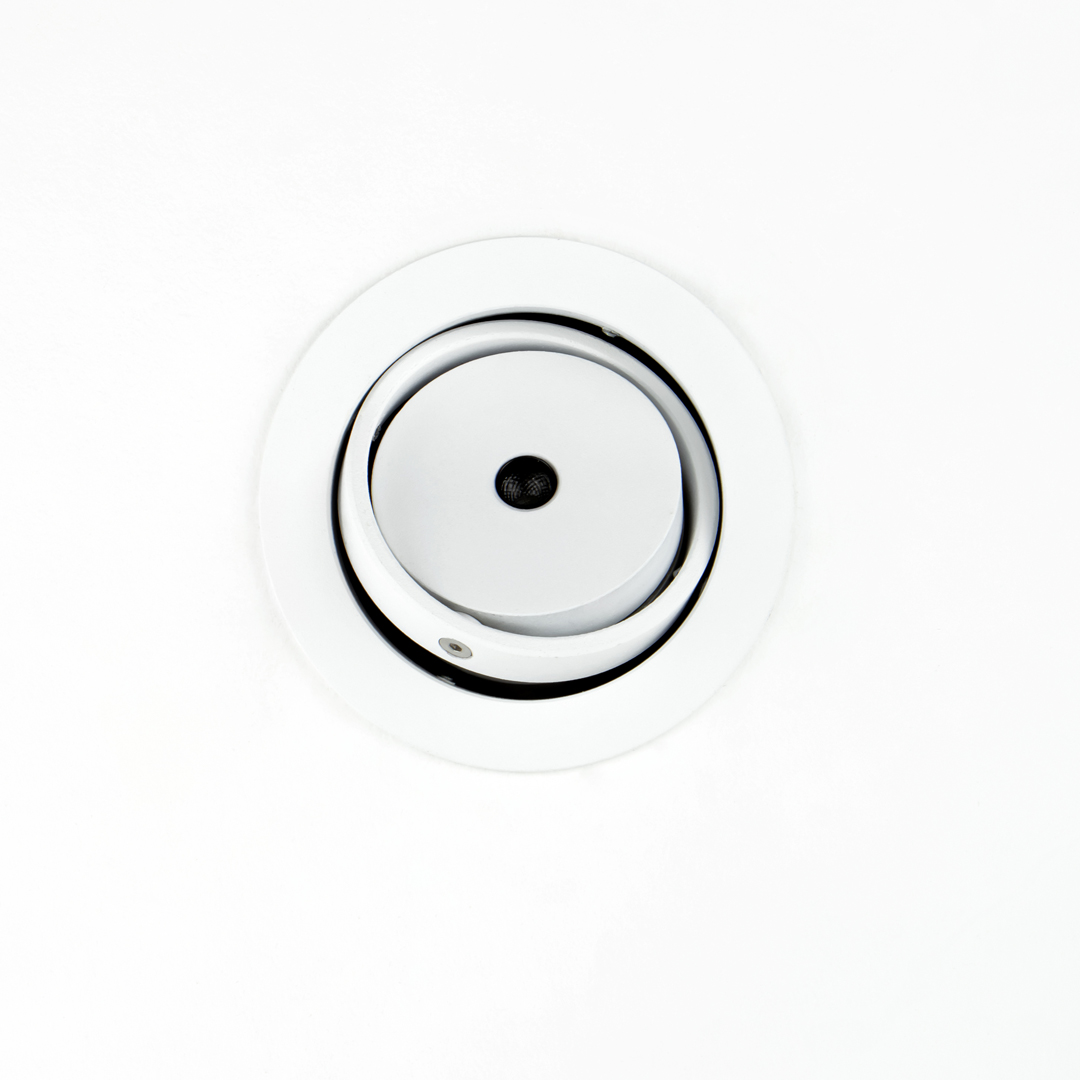

Oyan A
The Oyan A Luminaire by Fenos is a minimal recessed ceiling luminaire with a 8mm aperture and 9W power. Equipped with Bartenbach LFO lens technology, it distributes light evenly and softly, minimizing glare. Can be installed trimmed or trimless for seamless integration. Ideal for contemporary interiors, CRI 90+, engineered heat sink, standard drivers, and 5-year warranty.
| Family Order Code |
F189 |
|---|---|
| Light Source |
LED |
| Power Range |
9W |
| lm / W |
60 lm |
| Luminous Flux (lm) |
540 |
| Color Rendering (Ra) |
>90 |
| Color Temperature (K) |
2700K | 3000K | 3500K| 4000K |
| Body Color |
White | Black |
| Supply Voltage |
120 Vac, 50Hz |
| Driver |
TRIAC/0-10V/DALI, Dimmable version available upon request |
| Recommended Applications |
INDOORS / Residential / Office / Shop |

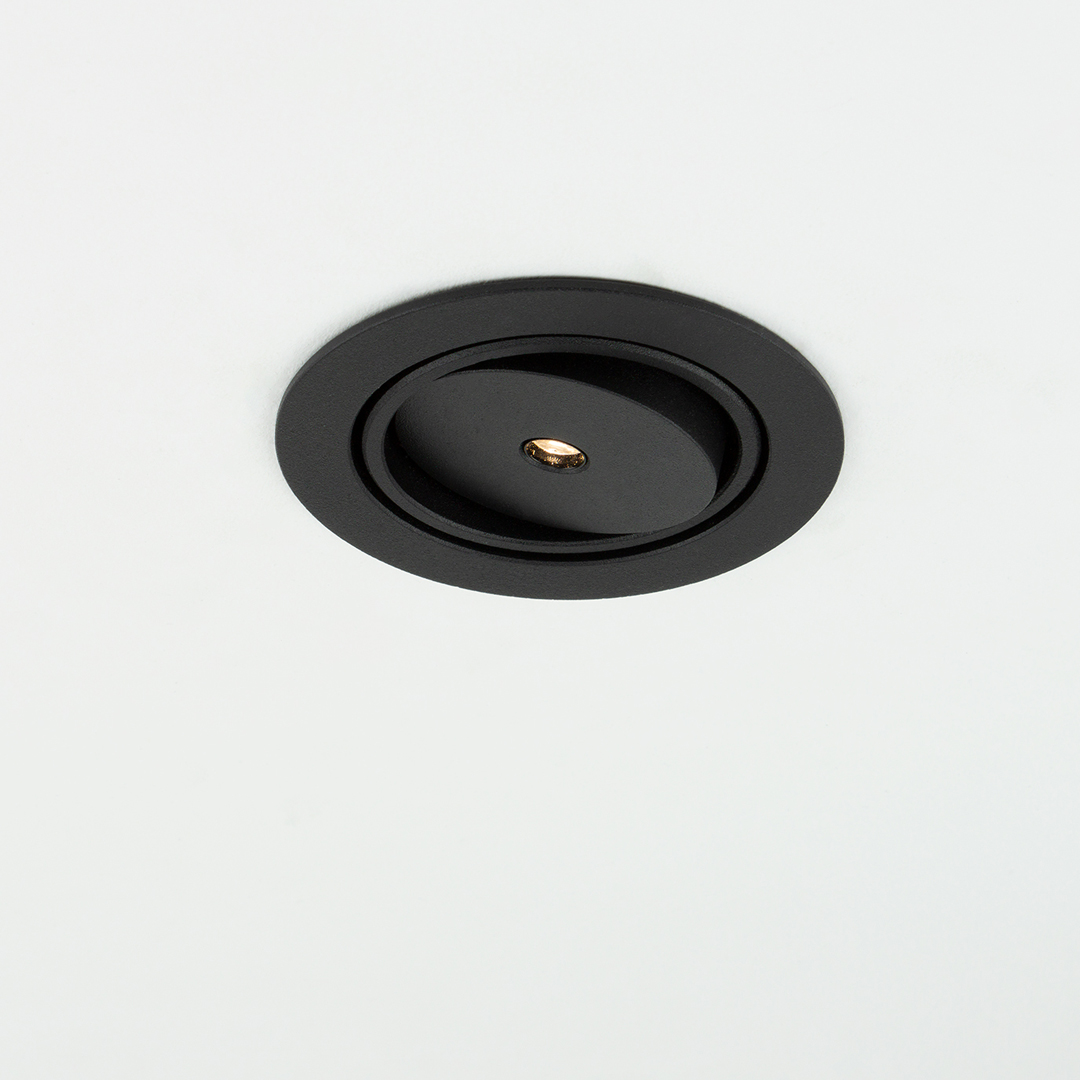

Oyan A Flat And Minimal Downlight
Modern Recessed Spotlight

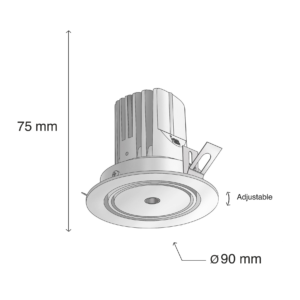

Dimensions

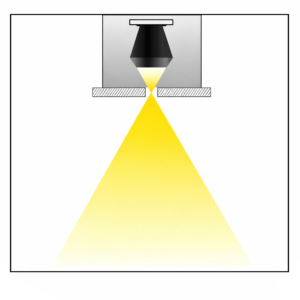

An advanced optic makes a focal point below the lens and light is widened afterward
3D View
Description
Oyan A by Fenos – The Quintessential Minimal Recessed Light
The Oyan A by Fenos is the quintessential minimal recessed light for the modern architect and designer. As one of the brand’s most understated designs, its unique shape allows for an exceptionally discreet ceiling installation. It distributes soft, even light through a tiny 10mm aperture, perfectly blending elegant design with high functionality. This 9W luminaire is engineered not just to illuminate a space, but to enhance its mood and architectural integrity, making it a definitive choice for sophisticated interiors.
Engineered for Minimalist Perfection
Every aspect of the Oyan A is designed to celebrate minimalism. Its power lies in what you don’t see. This fixture is the ideal solution for projects demanding a clean, uncluttered ceiling plane without compromising on the quality of light.
- Understated & Sleek Design: Exceptionally compact and subtle, the Oyan A is the ideal choice when looking for a minimal recessed light. It integrates seamlessly, offering soft, glare-free ambient illumination that elevates the architecture.
- Flexible Installation Options: Catering to any design preference, the Oyan A can be installed as a trimmed (with edge) for a classic look or completely trimless (frameless) for a flawless, plaster-in finish that merges with the ceiling.
- Advanced Bartenbach LFO Lens: At the heart of the Oyan A is a premium Bartenbach LFO lens. This advanced optic expertly reduces glare (UGR < 19) while delivering a strong, consistent, and visually comfortable light output, proving that minimal size does not sacrifice performance.
Ideal Applications for Architectural Spaces
The versatility and sophisticated design of the Oyan A make it a powerful tool for lighting designers in a variety of settings. Its ability to provide high-quality ambient light from a nearly invisible source is invaluable in spaces that require both function and beauty.
- Residential Projects: Perfect for modern kitchens, hallways, and living areas where a clean aesthetic is paramount. It provides general illumination without creating visual distraction.
- Hospitality Environments: In hotel lobbies, boutique rooms, and fine-dining restaurants, the Oyan A creates a luxurious and intimate atmosphere, enhancing the guest experience with warm, comfortable light.
- Commercial & Retail Spaces: Use it in art galleries, high-end boutiques, and showrooms to add a layer of soft ambient light that complements accent lighting, allowing the products or artwork to take center stage.
Design Philosophy and Technical Excellence
The design of the Oyan A follows the principle that the best light is one that feels natural and unobtrusive. The 10mm aperture is a feat of optical engineering, focusing the light path to eliminate side glare and create a calm environment. The trimless option, in particular, allows the fixture to become one with the architecture, leaving only a “pinhole” of light. This approach to “quiet design” ensures that the focus remains on the space and its contents, not the light source itself, making the Oyan A a true minimal recessed light in both form and function.
The Fenos Standard of Quality

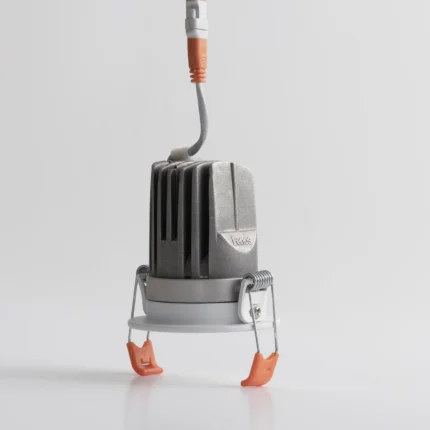

- Engineered Heat Sink Design: Provides superior thermal efficiency to guarantee a long and reliable lifespan.
- High CRI (90+): Renders colors with exceptional accuracy for a true-to-life visual experience.
- Standardized, Reliable Drivers: Ensures stable, flicker-free, and energy-efficient operation.
- 5-Year Manufacturer Warranty: Backed by Fenos’s commitment to quality and durability.
Downloads
- Datasheet
- IES/LDT File
- BIM Data (Revit Family)
- 3D File
- Installation Details
- Marketing Brochure
Order Code

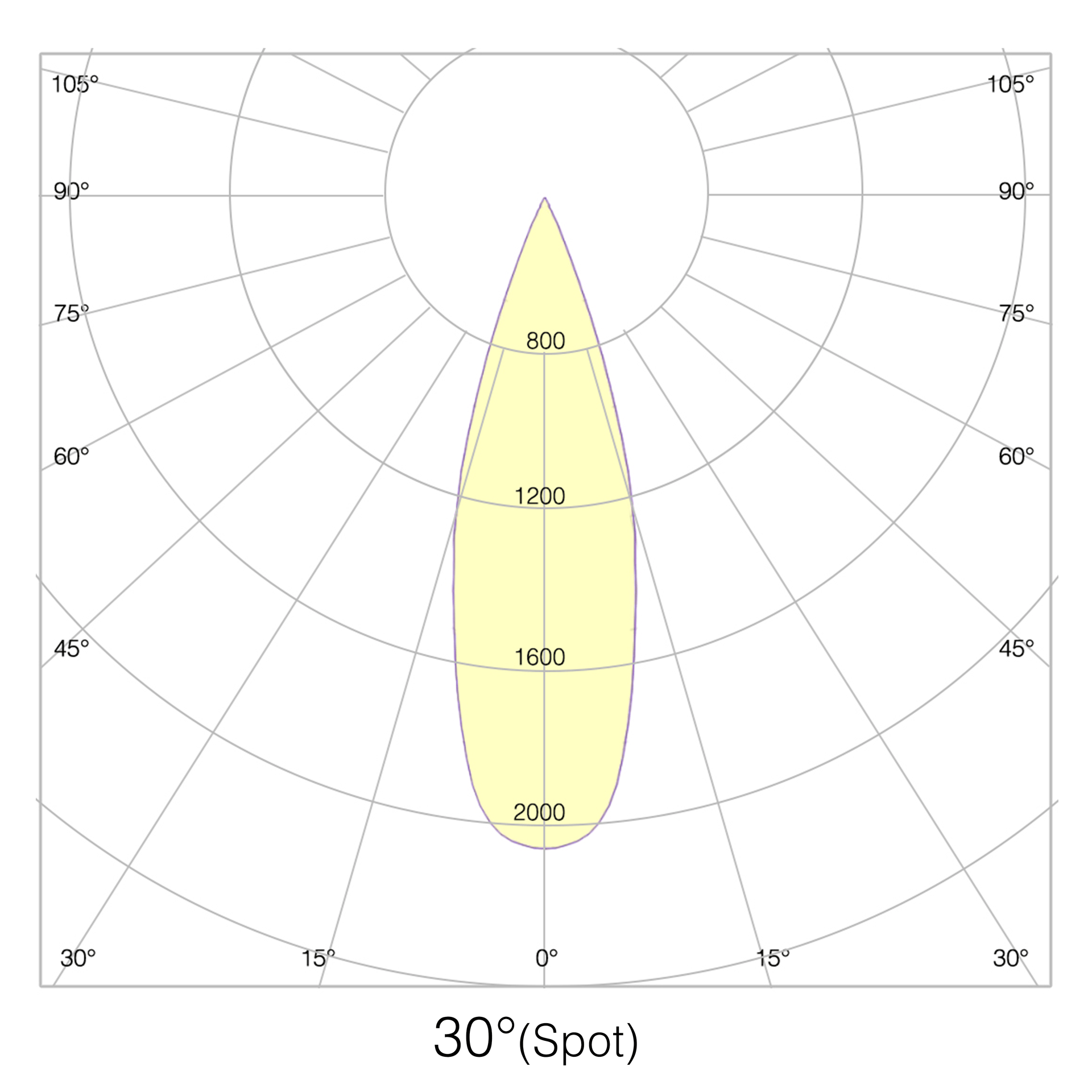

| ORDER CODE | POWER (W) | CCT(K) | BEAM ANGLE | BODY COLOR |
|---|---|---|---|---|
| F189W930S | 9 | 3000 | Spot | White |
| F189W930M | 9 | 3000 | Medium | White |
| F189W940S | 9 | 4000 | Spot | White |
| F189W940M | 9 | 4000 | Medium | White |
| F189B930S | 9 | 3000 | Spot | Black |
| F189B930M | 9 | 3000 | Medium | Black |
| F189B940S | 9 | 4000 | Spot | Black |
| F189B940M | 9 | 4000 | Medium | Black |
